ELECTRIC CHARGING

Plug into the future. Drive the change. With Lumosa's state-of-the-art EV charger, your employees, business associates and yourself will be on the road full of energy. Available in different designs: that way we are sure it will fit you perfectly!

Lumosa 22 11 20230611

Home charging

Lumosa 22 11 20230797

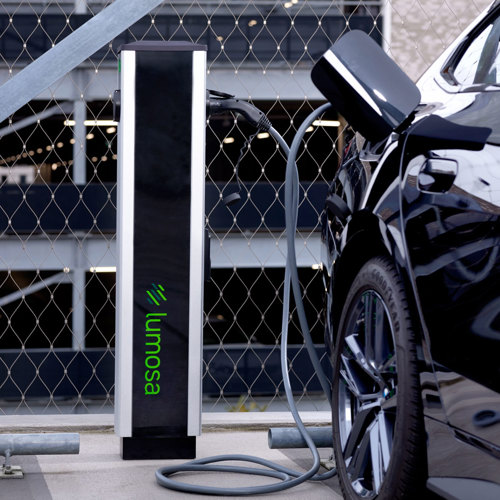

Business charging

Download the specifications and find out all about the TRACK S2 charging station!

Lumosa 22 11 20230384
Winnen

Modular & sustainable

Our modular charging stations are optimally sustainable: where necessary, only small parts need to be replaced instead of the complete product. Everything works on existing infrastructure, so the step towards more energy-efficient light is much easier to make. Accessible and modular. All of our products will be DC-ready in the future, prepared for the day when direct current finally becomes the norm.

Let's talk!

For questions about the specifications or launch of the charging station, reach out to us!

FAQ - TRACK EV CHARGER

  • What is the Lumosa TRACK EV Charger?

    The TRACK is a modular AC charging station for electric vehicles, specifically developed for commercial use. It’s reliable, modular, and future-ready. Available with 1 or 2 sockets and in both 11 kW and 22 kW versions.

  • How fast does the TRACK charge?

    Depending on the model, the TRACK charges at either 11 kW or 22 kW. That means most electric vehicles can be fully charged within just a few hours.

  • Can I connect multiple chargers to a single grid connection?

    Yes. With our Lumosa Energy Manager, you can connect multiple charging stations to a single power connection. Smart dynamic load balancing ensures the available capacity is distributed optimally.

  • Is the TRACK compatible with my back-end system?

    Yes. The TRACK is OCPP 1.6-compliant, making it compatible with most existing platforms. We support Lumosa CPMS and E-Flux by default, and other systems are possible too.

  • Can I personalise the TRACK with my logo or branding?

    Absolutely. The front panel of the TRACK can be customised with your logo or corporate identity — so it fits perfectly with your brand or location.

  • What are the installation options?

    The TRACK can be mounted on a ground base (for stable surfaces like concrete) or a foundation base (for soft surfaces like grass or sand).

  • What is the lead time for delivery?

    Since we manufacture the TRACK ourselves, we can deliver quickly. Standard units are usually available within a few working days. Customised chargers have a lead time of approximately 4 weeks after design approval.

  • Is there a warranty on the charger?

    Yes. Every TRACK EV Charger comes with a 2-year standard warranty.

  • Is the TRACK suitable for outdoor use?

    Definitely. The TRACK has an IP54 and IK10 rating. It’s resistant to rain, dust, impact and can operate in temperatures from -25°C to +50°C.

  • How is the TRACK connected?

    The TRACK uses three-phase cabling (3L+N+PE) and is compatible with TNS, TT, and TNC-S systems. It connects via the P1 port or current transformers.

  • Is there a solution for locations without a wired internet connection?

    Yes. For locations without a fixed connection, a 4G modem is available per charger — so you're always connected.

  • Can I charge my electric boat with the TRACK?

    Yes. The TRACK uses a Type 2 connector, which also makes it suitable for charging electric boats and other vessels with the same connection. Perfect for use both on the dock and on land.

  • Does the grid operator’s CAM (Compact Connection Module) fit inside the TRACK?

    No, the CAM does not physically fit inside the TRACK charger. This charger is designed for use on private property.
